KORDZ PRS-KS

  • Slideshow 1
  • Slideshow 2
  • Slideshow 3
  • Slideshow 4
  • Slideshow 5
  • Slideshow 6
  • Slideshow 7

Descrizione

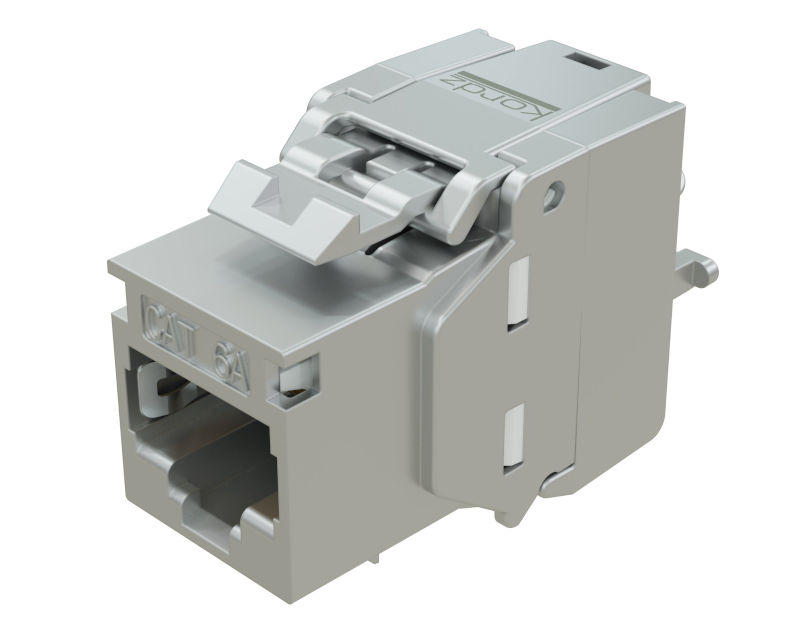

I connettori RJ45 Kordz PRS Field Termination si integrano perfettamente con i cavi di categoria bulk della serie Kordz ONE e offrono agli integratori professionisti la massima sicurezza nella fornitura di una soluzione di cablaggio end-to-end.

Caratterizzati da un design a coccodrillo pressofuso e da metodi di produzione avanzati, è possibile abbinarli ai cavi patch Kordz PRS per un ecosistema Kordz completo che offre "Connettività garantita".

Design a coccodrillo pressofuso. Facile da terminare. 6 pezzi per confezione. Struttura schermata robusta e resistente. Prodotti con materiali di qualità e metodi di produzione avanzati





Scarica la guida "Kordz Network System Component"

Scheda tecnica

Guaranteed Performance Category: Category 6A

Applicable Standards: ANSI/TIA-568-C.2

Housing material: Zinc Alloy

Flammability Rating: UL 94 V-0

Contact Type Three Prong for Solid / Stranded wires

Contact Material: Copper

Contact Plating IDC: Phospher bronze, Tin Plated

Contact Plating RJ45: Gold Plating 50µ” [1.27µm]

Housing Colour: Transparent

Shielding Type: Shielded

Operating Temperature: -10° to 66°C

Keystone Body Length: 37.33mm | 14.7in

Keystone Body Width: 17.10mm | 6.7in

Keystone Body Height: 23.68mm | 9.3in

Panel Mating Height: 16.10mm | 6.3in

Panel Mating Width: 14.50mm | 5.7in

Voltage/Current rating UL Applications: 125 Volts AC / 1.5 Amps

Dielectric Withstanding Voltage: 1500 Volts DC / AC Peak

Contact Resistance: ≤ 20mΩ

Insulation Resistance: ≥ 500MΩ

RJ45 Cycle: 750 times

Insertion IDC: 20 times

Wire Gauge min/max: min: 26AWG / max: 23AWG

Conductor Diameter: max:8.5mm Ø

Cable Jacket Diameter max: 6.5mm Ø
